Housing
ventilation

Indoor air quality, people safety, acoustic comfort and energy savings are criteria and performance of this program certified 400°C-1/2H, covered by a CSTB Technical Advice (HYGRO A, B and GAZ). Communicating and ergonomic for an easy installation and use.

Econizer™, exhaust fan unit F400-60 low consumption

ECOBLUE™, EXHAUST FAN UNIT F400-60 low consumption constant pressure

ECOVOR™, EXHAUST FAN UNIT F400-60 very low consumption constant pressure

NOE™, EXHAUST FAN UNIT F400-60

NOE LOBBY™, C4 EXHAUST FAN UNIT belt pulley constant pressure

EVERKIT™, ERU F400-60 very low consumption constant pressure

Econizer™, exhaust fan unit F400-60 low consumption

ECONIZER™, 400°C - 1/2h exhaust fan unit;
ERP2018, very low consumption for housing ventilation.
Motor fan : High efficiency forward wheel or backward wheel
Potentiometer and padlockable switch, wired and mounted as standard.
Direct drive EC motor
Flow rate from 50 to 11 000 m³/h.

ECONIZER^™, CMV C4 exhaust fan unit, certified 400°C - 1/2h (PV CTICM N°EFR-15-002420 and 11-F-516) for air extraction in houses and public assembly
buildings and ERP (articles CH41 to 43, directive of 14-02-2000).
Equipped with branch connections with double lip seals to ensure the network sealing (ATEC CSTB n° 13-224-V2), a local padlockable ON/OFF switch and a IP54 potentiometer, on front panel.
It is covered by a CSTB technical notification for Hygro A, Hygro B and Hygro Gas usage (article of october 1983)
Bird protection grid on discharge
Forward wheel with specific profile or backward wheel (size 3000 and 5000).
Very low consumption EC motor meeting ErP 2009/125/EC (phase 2, 2018) directive. Compliant with RT2012;
Can be installed internally or externally. Its cubic shape adapts to all intake/discharge combinations, at 90°.

Model	Static Pressure Curves	Public price
ECONIZER 600 Code : CEC025691		Connectez vous pour accéder aux tarifs

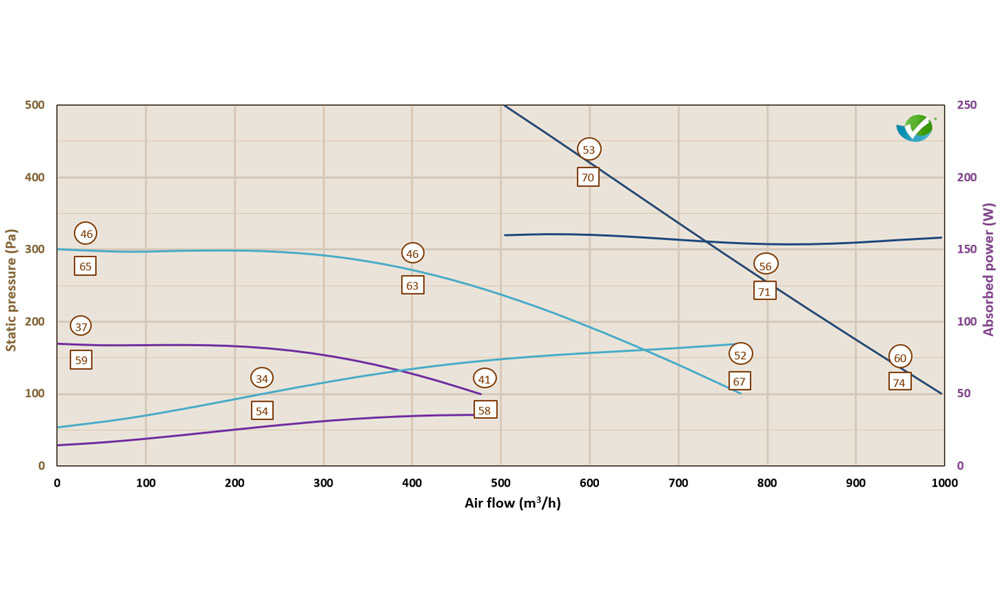

ECONIZER 1000 Code : CEC025692		Connectez vous pour accéder aux tarifs
ECONIZER 1800 Code : CEC025694		Connectez vous pour accéder aux tarifs

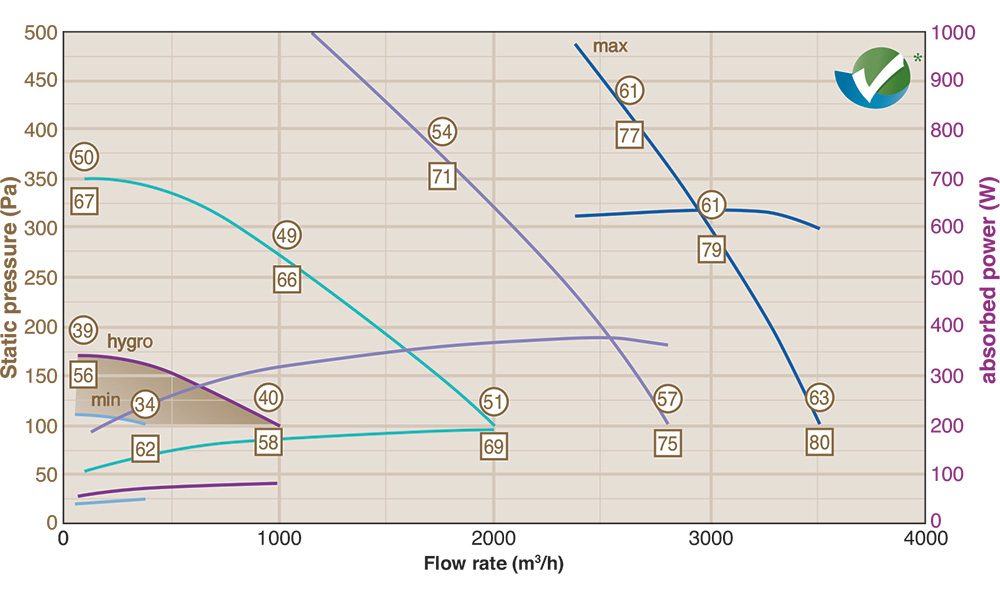

ECONIZER 3000 Code : CEC025695		Connectez vous pour accéder aux tarifs

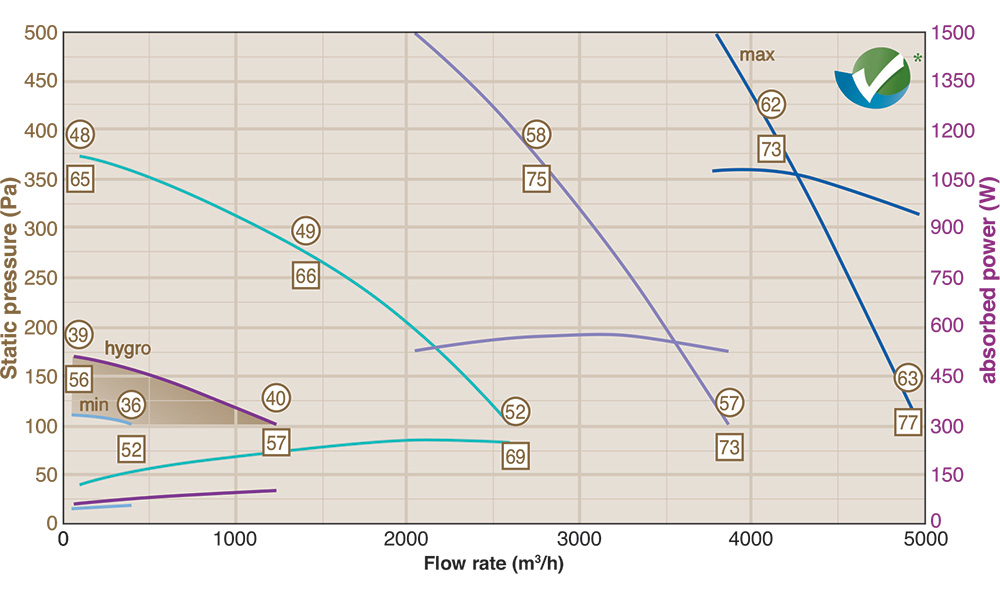

ECONIZER 5000 Code : CEC025702		Connectez vous pour accéder aux tarifs

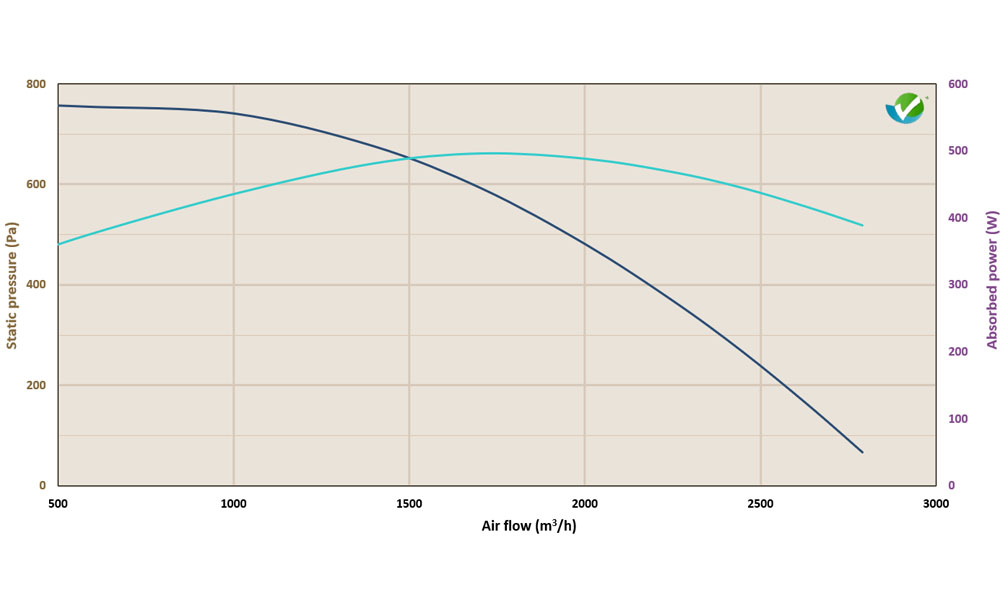

ECONIZER 2600 Code : CEC025703		Connectez vous pour accéder aux tarifs

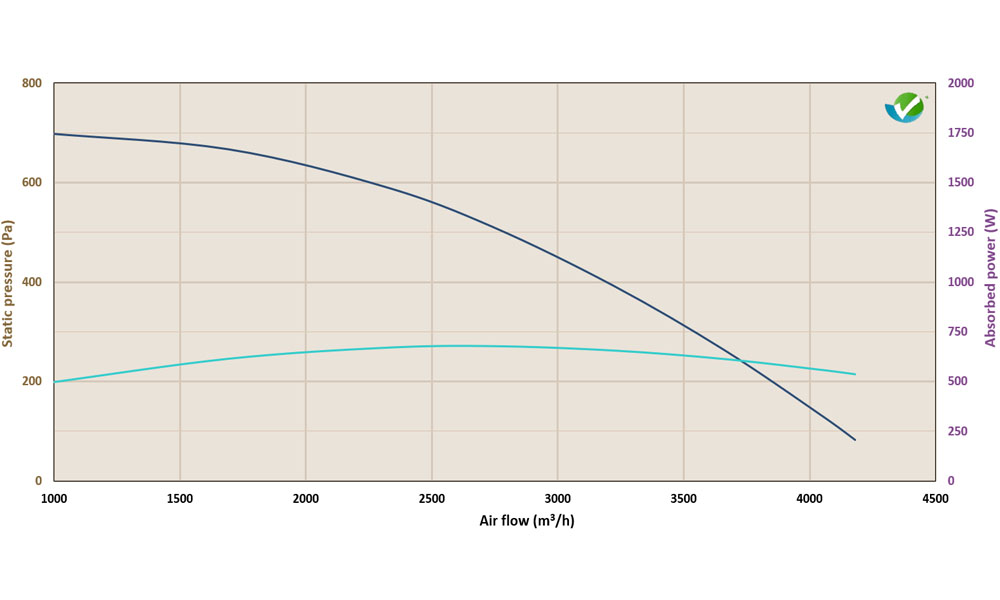

ECONIZER 4200 Code : CEC025704		Connectez vous pour accéder aux tarifs

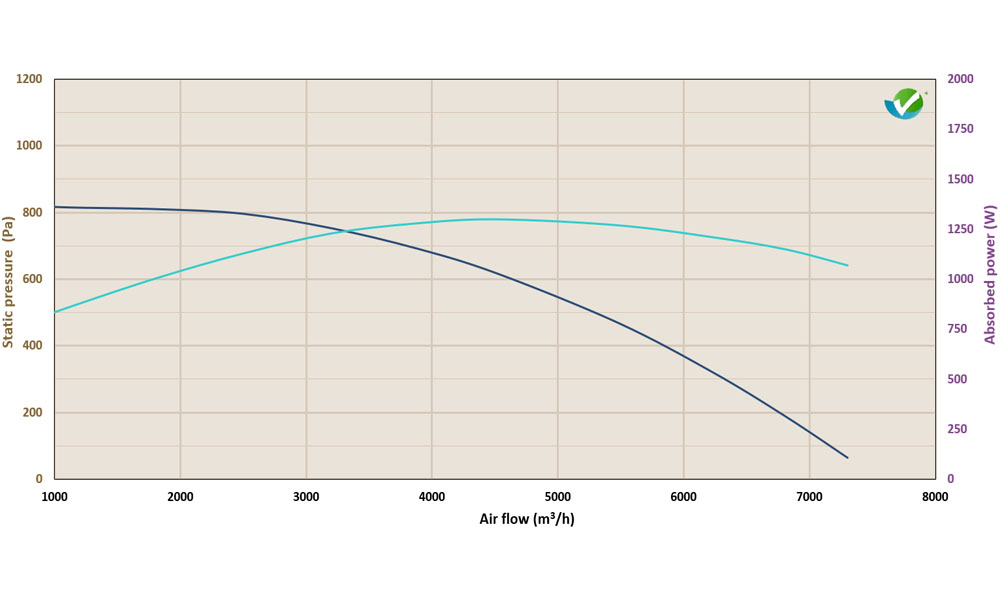

ECONIZER 6800 Code : CEC025705		Connectez vous pour accéder aux tarifs

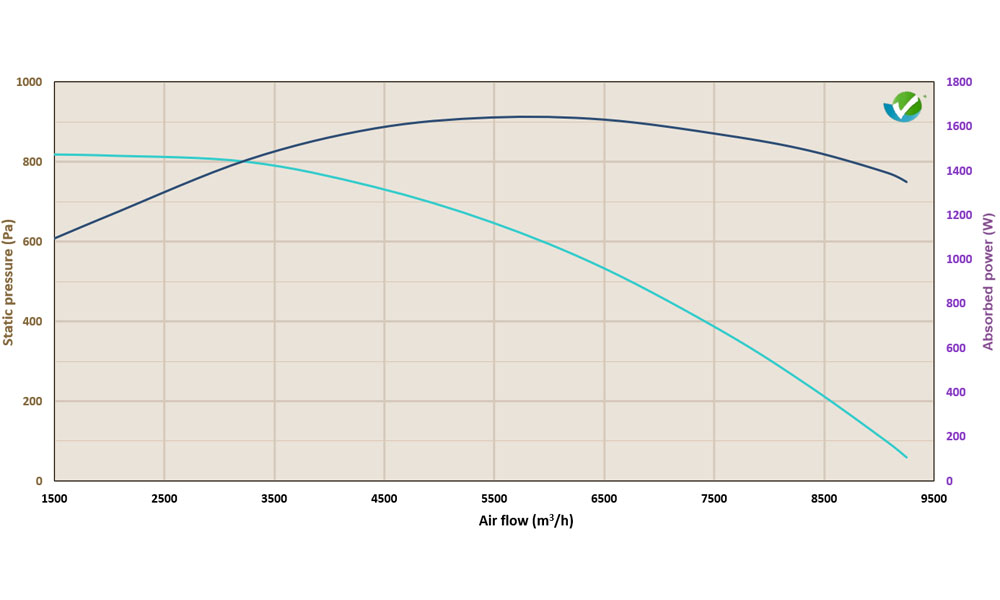

ECONIZER 9100 Code : CEC025706		Connectez vous pour accéder aux tarifs

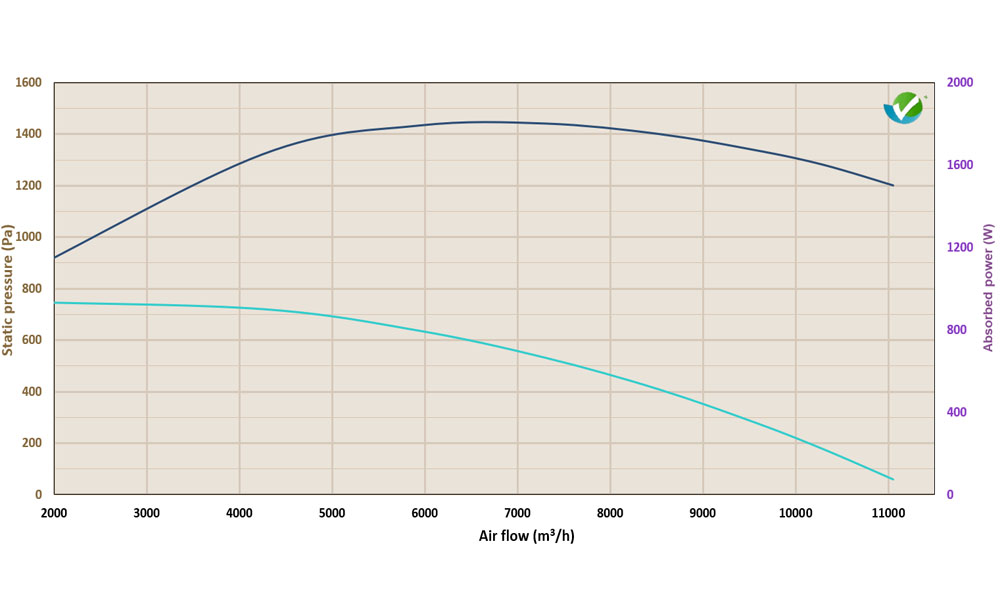

ECONIZER 11000 Code : CEC025707		Connectez vous pour accéder aux tarifs

CTICM C4 - 400° C - 1/2 h, 50Hz and 60Hz approved, PV n° EFR-15-002420 et 11-F-516

Meets requirements of the EP2009/125/EC directive (phase 2, 2018)

CSTB technical notification for Hygro A, Hygro B and

Hygro Gas usage

Very low consumption econological™ solution, compliant with RT2012

PLUG&PLAY, the ECONIZER^™ range is designed, manufactured and tested at our factory

EASY TO INSTALL
Can be installed inside or outside, on the ground or suspended
Its cubic shape adapts to all intake/discharge combinations, at 90°

EASY TO USE AND MAINTAIN
Equipped with a potentiometer, the C4 E exhaust fan unit ECONIZER^™ enables a proper operation, adapted to the installation needs
The technical back panel regroups the local padlockable switch and the potentiometer.
Easy access to all internal parts through the technical panel, for an easy maintenance
